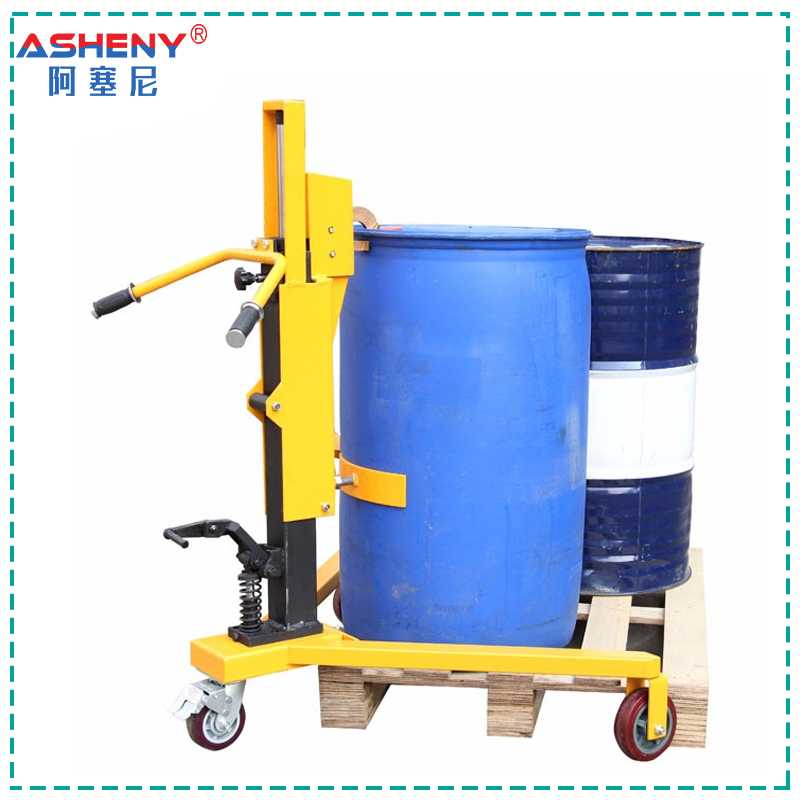

DT350B pedal hydraulic oil barrel car
[Product description]
★ Oil bucket truck design structure is simple and lightweight, easy to operate labor saving.
High-quality oil cylinder, pedal operation, fast lifting speed, lifting height can reach 300mm.
★ Through a special hydraulic cylinder easy foot up, up when the eagle has automatic grasp and lock function, down the oil barrel will automatically open.
★ Suitable for chemical industry, food workshops, dyes, coatings, adhesives, petroleum, edible oil and other liquid liquid handling, loading and unloading of pallets, etc. Suitable for open or closed iron drum, and closed plastic drum.
★B can enter the pallet depth 600mm, applicable pallet width 900mm, height 180mm.
[Technical parameters]
Type DT350B no.
Rated load (KG) 350
Net weight (KG) of 50
Hydraulic rise √
Maximum lifting height (mm) 300
￠150×50 for front wheel (PU wheel) (mm)
￠125×50 for rear wheel (PU wheel) (mm)
The inside and outside width of the front leg (mm
Length of front leg (mm) 690
Whole vehicle (length × width × height)(mm) 1230×920×1120
